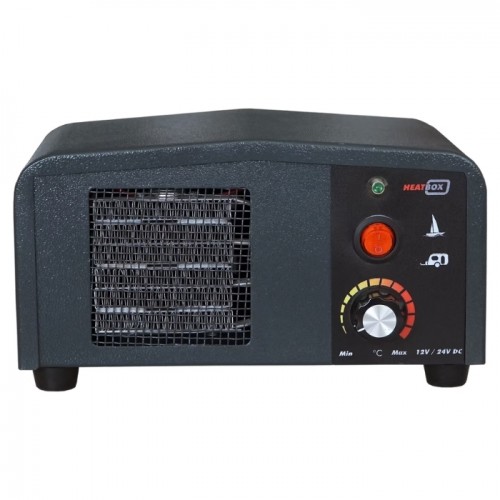

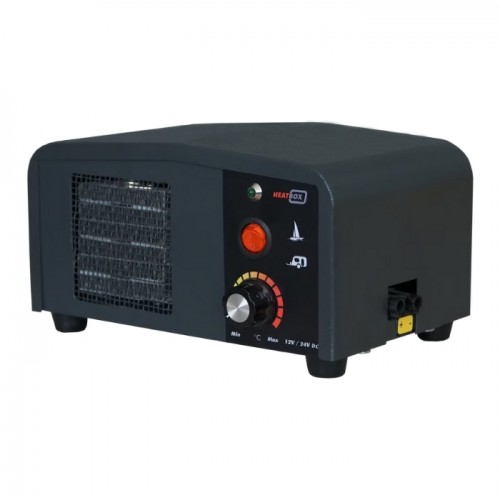

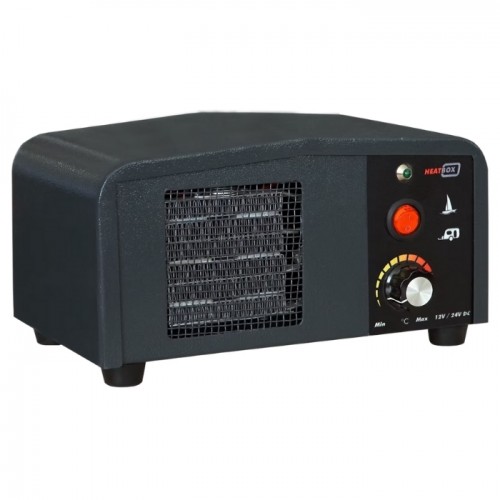

Heatbox Mini 24V 200W - 400W Smoke - Cream Fan Heater
Our 24V battery-powered fan heaters can heat up very quickly. Thanks to its special design, it is portable, ergonomic, and space-saving. It can be wall-mounted or easily removed for use on the floor, on cabinets, beside them, or stored in any compact area.
It provides economical heating using 24V battery power in enclosed spaces such as yachts, boats, caravans, cars, buses, minibuses, trucks, and tower cranes in motion. It produces high-performance heat in insulated environments and does not emit odors like diesel heaters.
Since it heats up quickly, it operates with a thermostat to provide maximum heat performance with minimal energy consumption.
It controls ambient temperature with a precise thermostat and turns off the heaters when the desired temperature is reached. The fan continues to operate until the heaters have cooled down.
Wall-Mounted or Freestanding Use
IP Protection Rating: IP20
Warranty Period: 2 Years
Product Usage:
- Carefully remove the device from its packaging,
- Before using the wall-mounted device elsewhere, disconnect the power socket,
- Ensure the air inlet and outlet vents are not blocked,
- Do not insert sharp metal objects into the hot air vents,
- Not suitable for use by children aged 0-10,
- Always operate with 24V as indicated on the product label,
- Do not sit on the product. Do not place heavy items or drop it,
- To maintain the fan motor's operating efficiency, avoid impact from the front and back and avoid contact with the fan,
- Clean only with a damp cloth. Avoid chemical cleaners and abrasive materials,
Product Specifications:
Product Dimensions:
- Width: 22 cm
- Depth: 14 cm
- Height: 11 cm
- Weight: 2 kg
- Power: 24V / 200 – 400W
- Current: 24V / 8A – 17A
- Heating Capacity: 20 m³/h
- Noise Level: 25 dB
- Thermostat: 0–70°C
- Fan Motor Power: 13 W
- Power Supply Type: Socket-type terminal
Product Advantages:
- Can be wall-mounted or used on the floor in boats and caravans
- Easy to attach and remove with wall-mount bracket
- Plug-in power supply allows convenient use anywhere
- Thermostat sensitive to room temperature ensures heat control and energy savings
- 100% domestically produced by PİNO PANO – R&D, design, patent
- High-efficiency heat output with special fan and heater
- Safety feature: fan keeps running even if overheated or heater turns off
- Superior performance for indoor heating
- Easy wall mounting and freestanding use
- Clean and odorless heating
Smoked

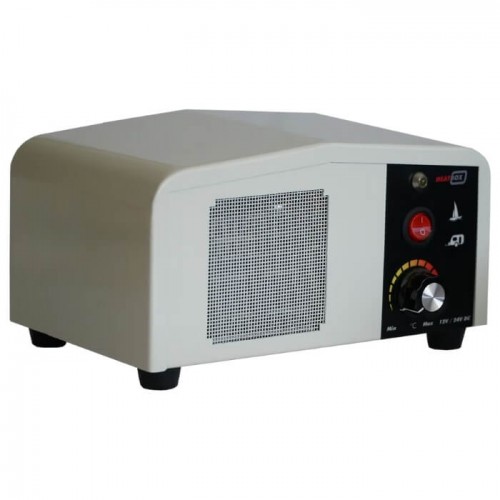

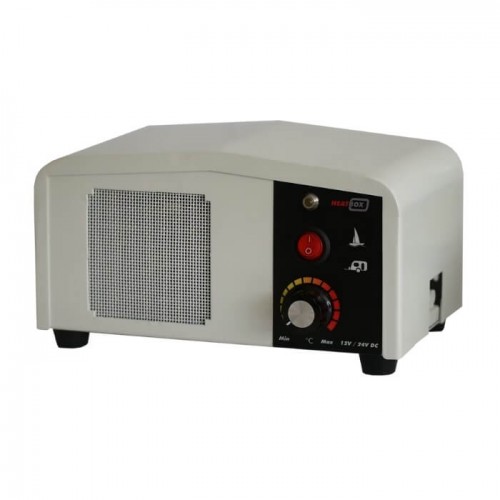

Cream
Heatbox Mini 24V 200W - 400W Smoke - Cream Fan Heater: The New Name in Mobile Heating
Specially designed for mobile vehicles, the Heatbox Mini is a compact and ergonomic fan heater that operates on 24V battery power. It provides economical and odorless heating in many mobile and fixed areas, from boats and caravans to cranes and minibuses.
Key Features
- Fast Heating: Thanks to its special fan design, it quickly warms up the environment.
- Thermostat Controlled: Its temperature-sensitive thermostat ensures energy savings.
- Compact Design: Weighing only 2 kg, it is easy to carry and can be wall-mounted.
- Odorless Heating: Offers a clean and quiet alternative to diesel heaters.
- Locally Manufactured: A reliable heating solution with 100% local production and patented design.
Technical Specifications
- Power: 24V / 200 – 400W
- Current: 8A – 17A
- Heating Capacity: 20 m³/h
- Noise Level: 25 dB (almost silent)
- Thermostat Range: 0 – 70°C
- Fan Motor Power: 13W
- Protection Class: IP20
- Dimensions: 22 x 14 x 11 cm
- Weight: 2 kg
Applications
- Boats and caravans
- Tents and rooftop tents
- Vehicles such as trucks, minibuses, buses
- Cranes cabin
- Areas without electricity, powered by batteries or solar/wind panels
Usage Advantages
- Can be easily wall-mounted or used with a stand

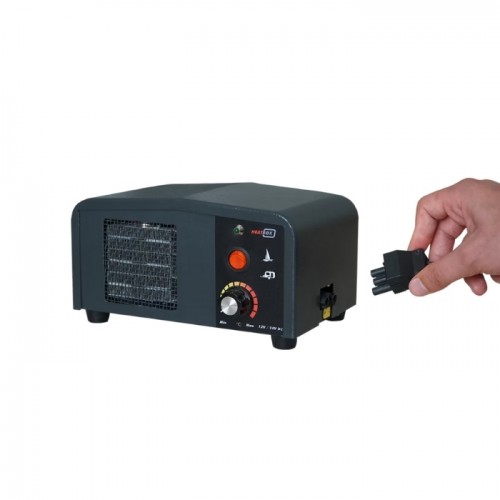

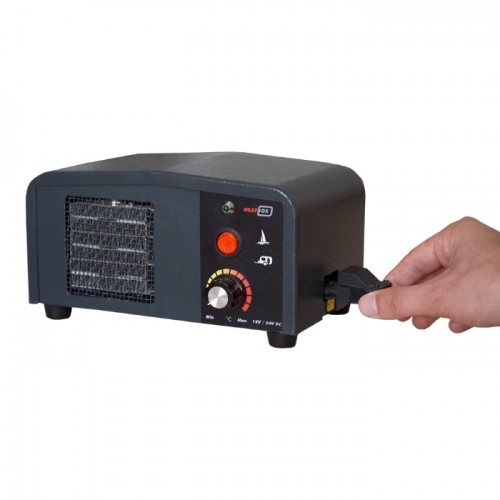

- Portable thanks to detachable socket connection
- Fan continues to run after heater shuts off until it cools down, ensuring safety
- Chemical-free, odorless, and silent heating
Precautions
- Must only be operated with 24V power
- Do not block the fan's air intake and outlet
- Do not place weight on or sit on the heater
- Not suitable for use by children
Heatbox Mini now makes fast, safe, and economical heating possible in your mobile living spaces. With its quiet operation, local production, and thermostat-supported design, if you are looking for an eco-friendly and user-friendly solution, you are in the right place.
